- CNC cut and formed from .120" steel.
- Sold individually.
- Works on either side of the vehicle.
- Does not work with long bed Rangers.
- Proudly designed and made in the USA.

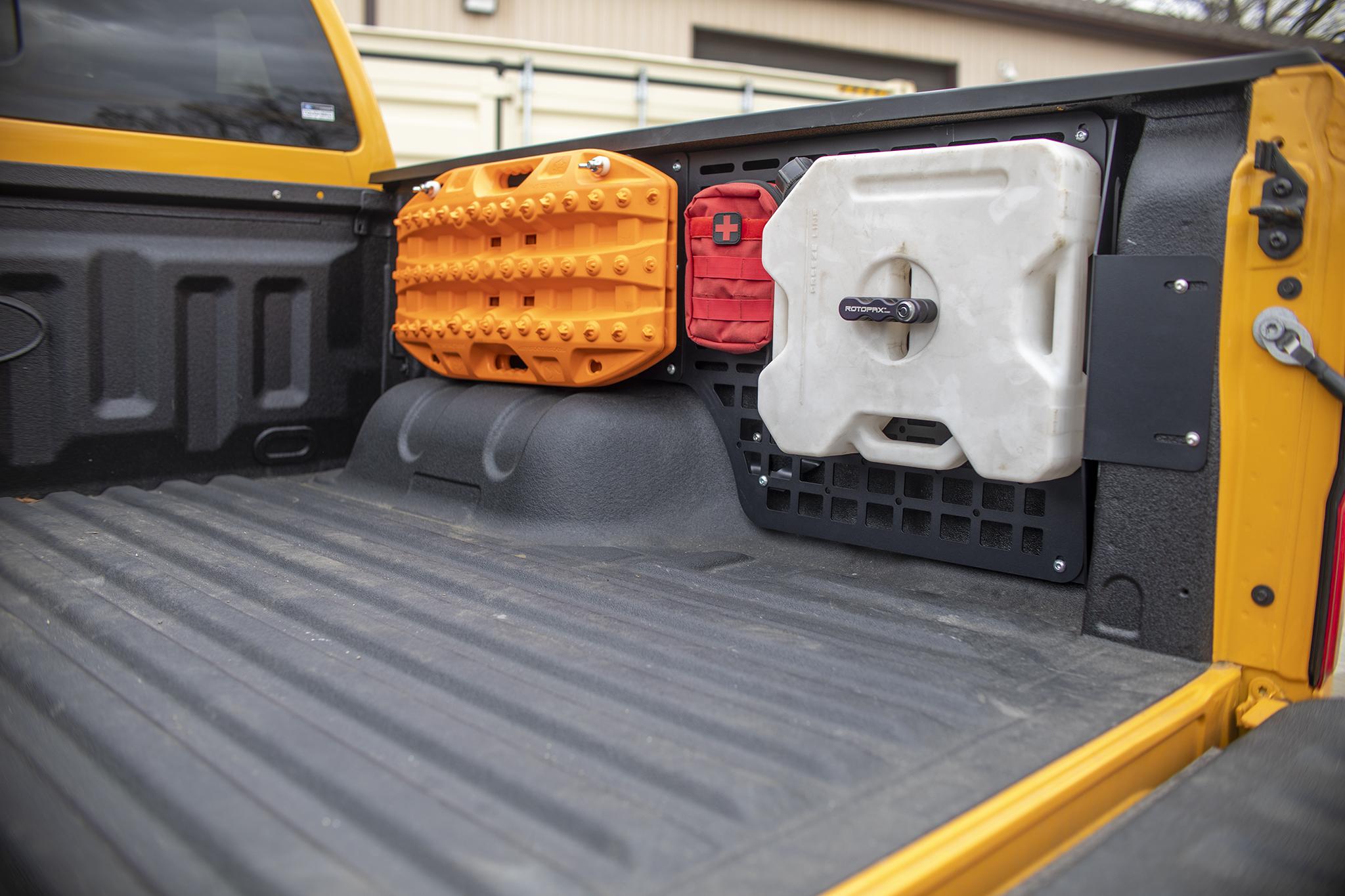

- Mounting patterns for, MOLLE, Hi-Lift Jack, Rotopax, tread boards, and more!
- Includes Hi-Lift mounting hardware.

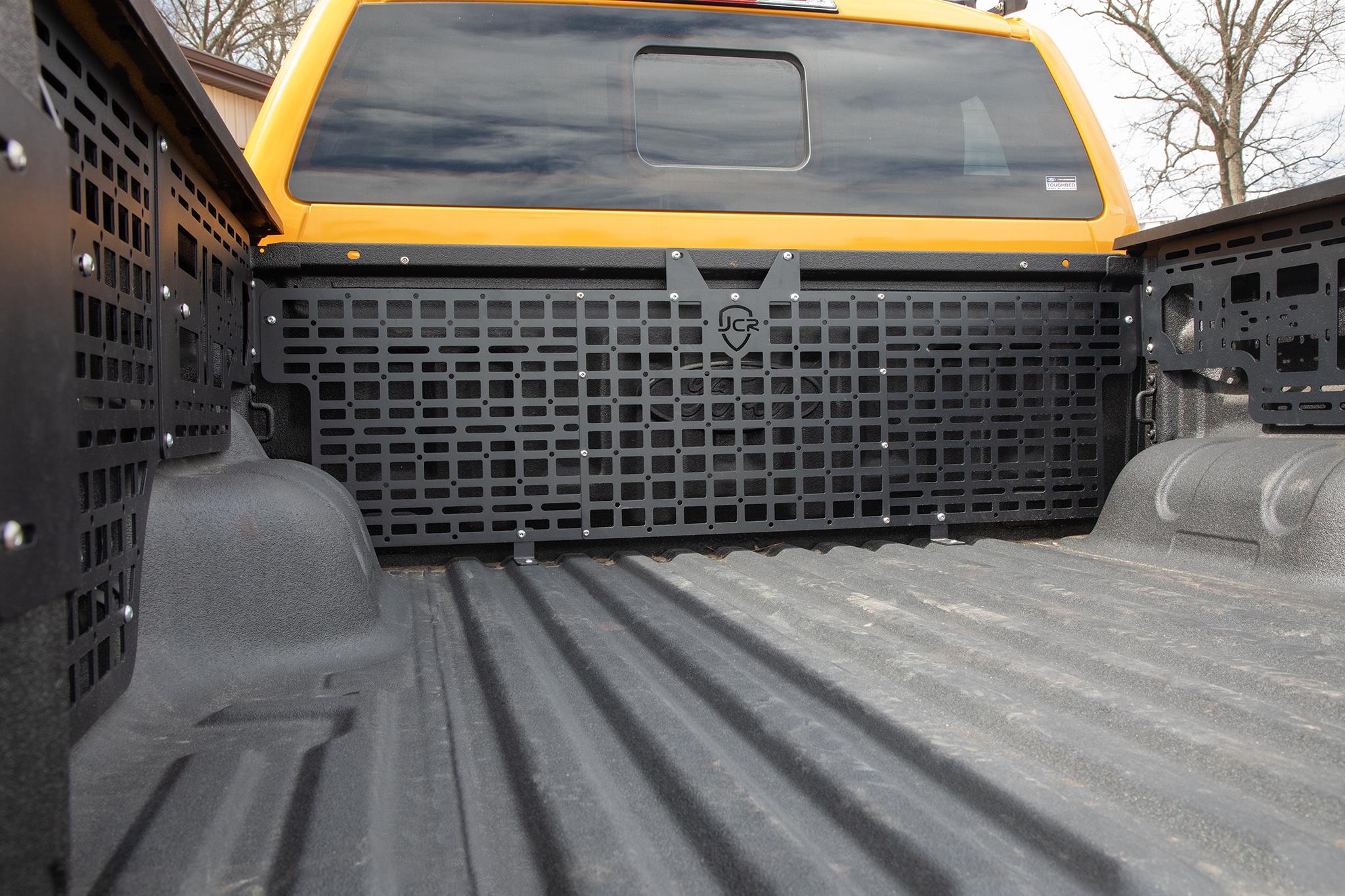

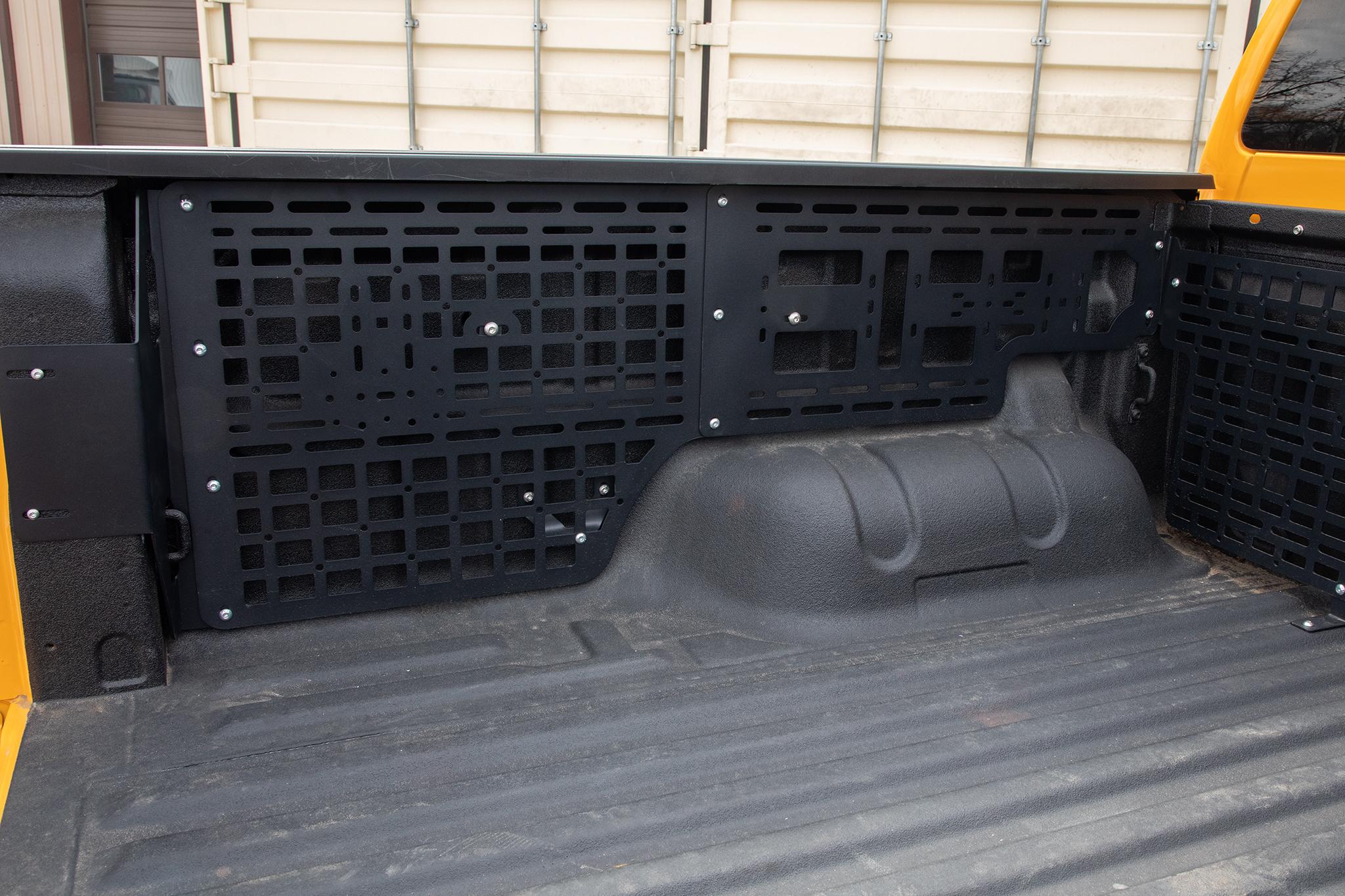

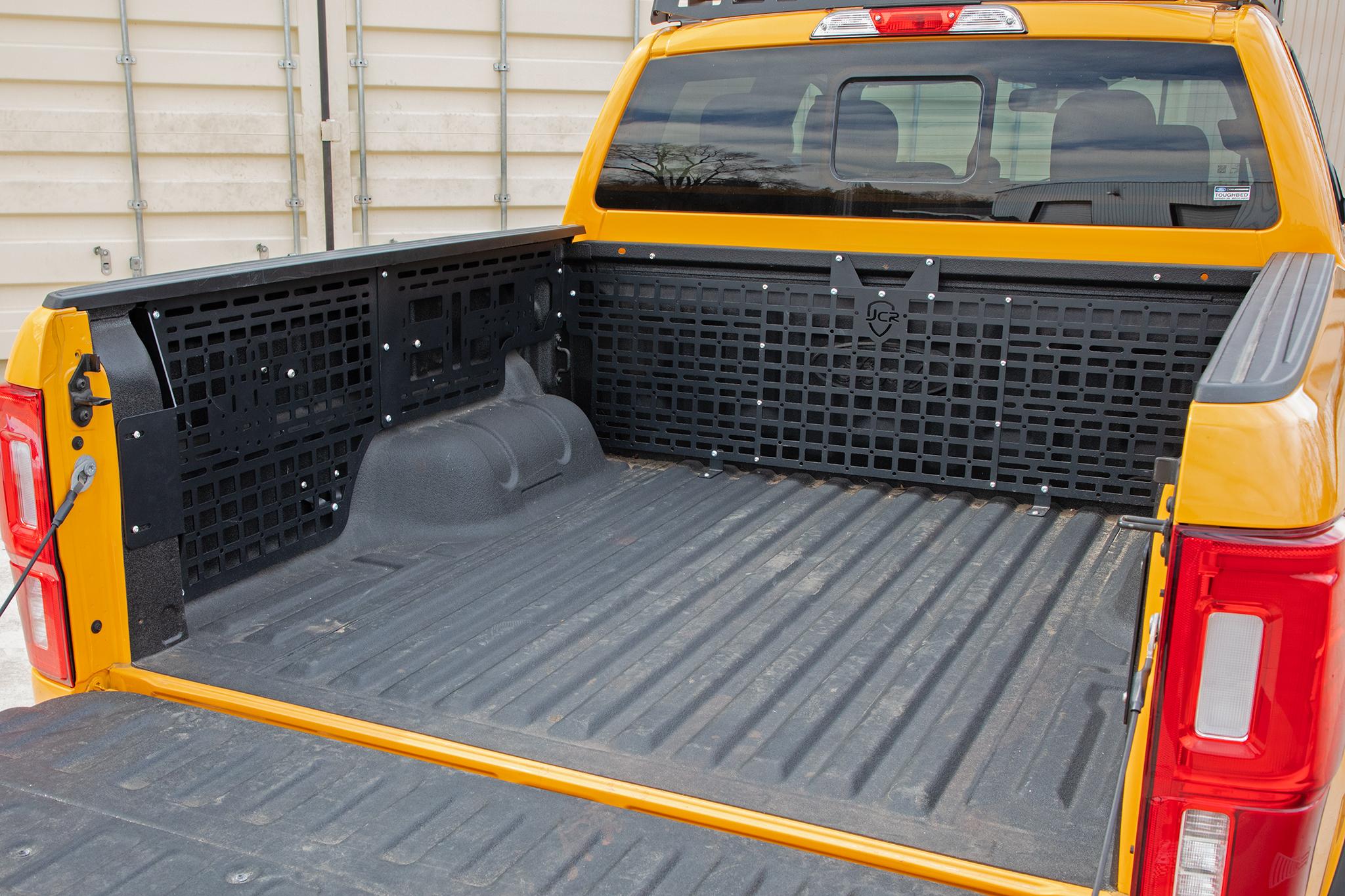

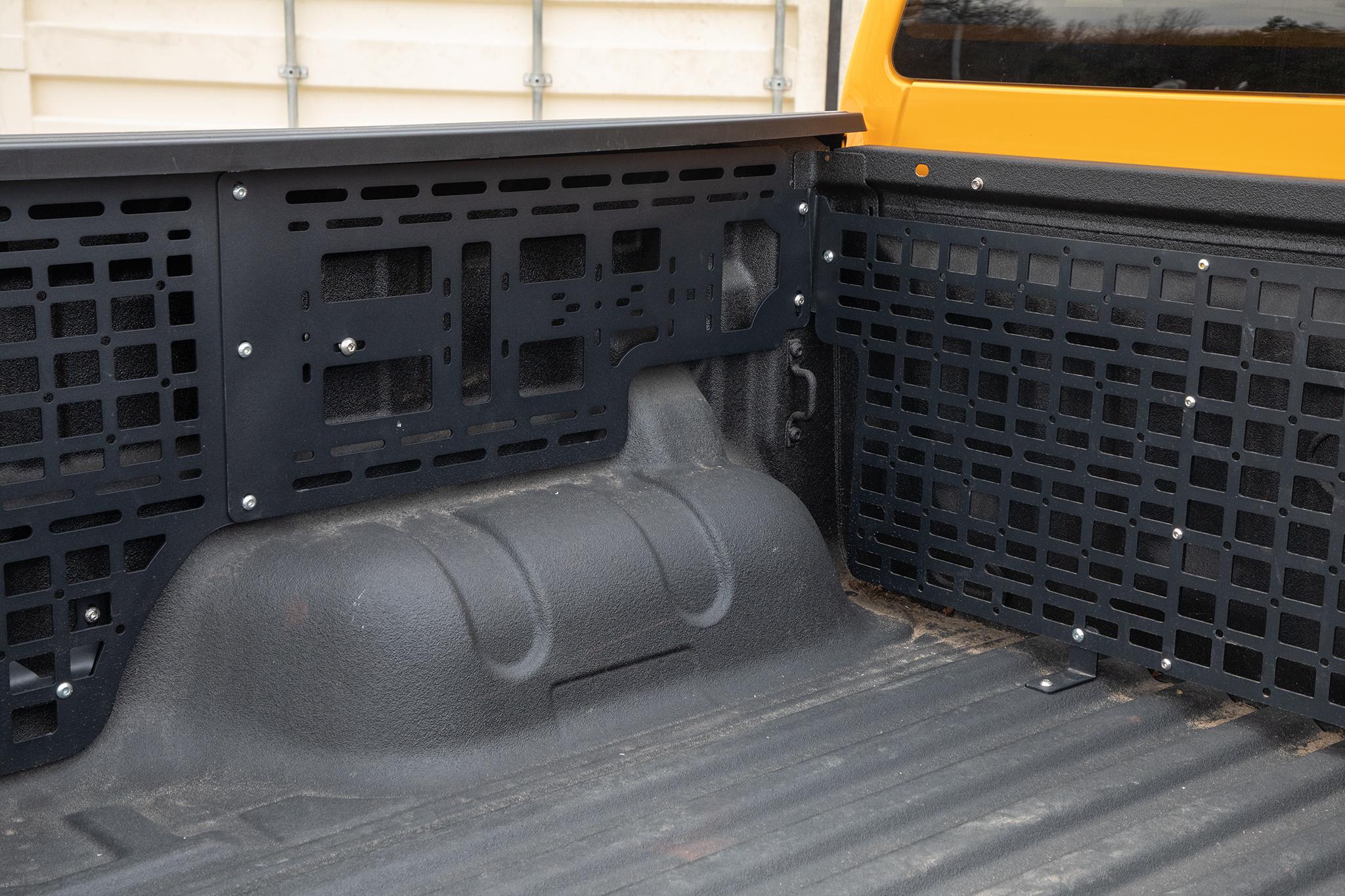

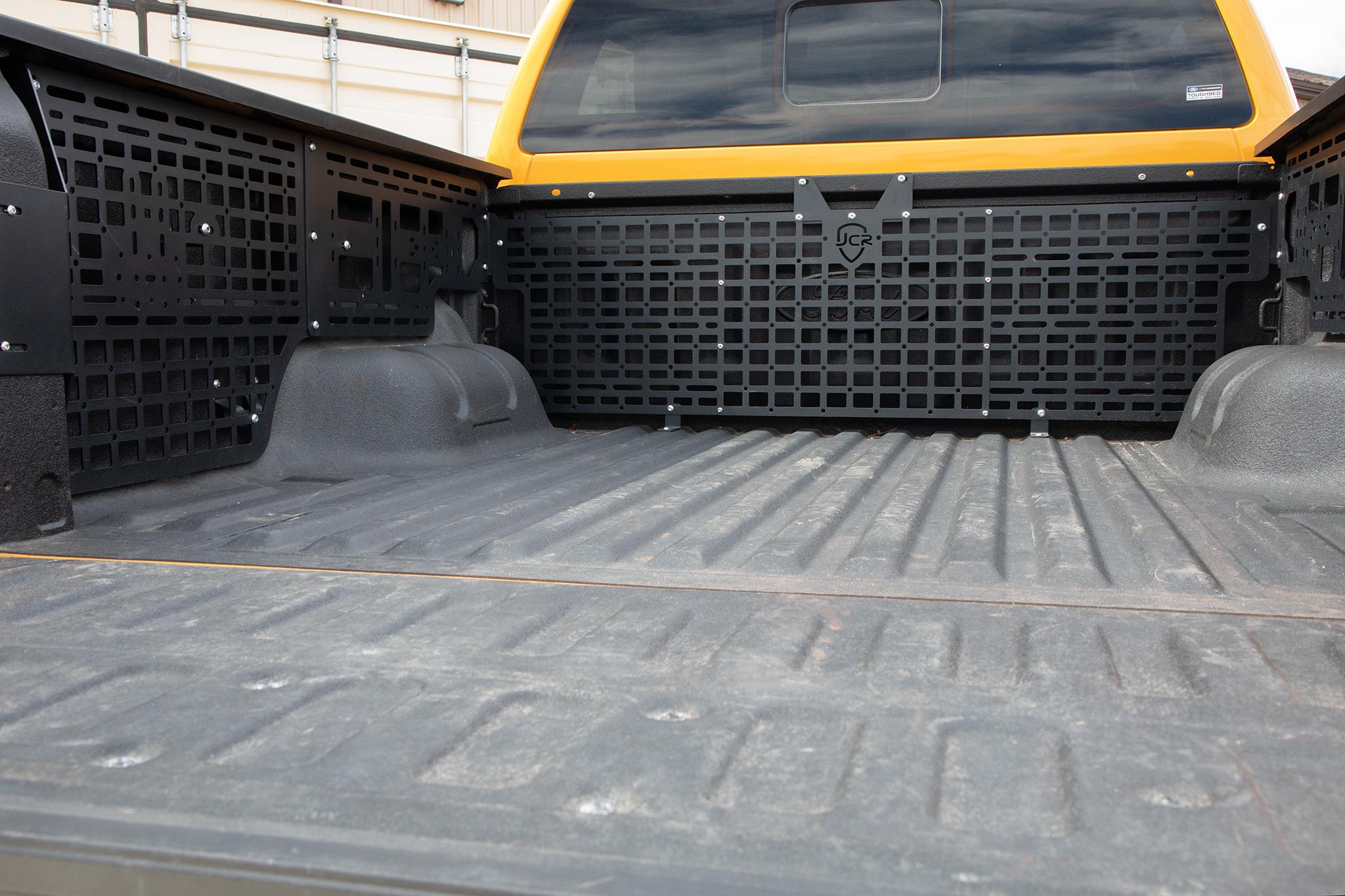

Ranger Bedside Molle and Accessory Storage Panel | 2019-2022
Designed to maximize the storage space by utilizing the bedside. Offers customizable mounting for tools and gear. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.
Looking for answers to common questions about us or our products? See our FAQ here.
13 Questions asked on Ranger Bedside MOLLE Panel | Ford Ranger (19-23)
•
Ask us anything
Q
Troy • 05/05/2022, 3:17:46 PM
Do you need to do any drilling in order to install this Miolle panel in the Ranger? What is the install process?
A
05/06/2022, 11:37:01 AM
You do not. If you have a spray-in bed liner you may need to chase the threads of some factory holes with a tap. Checkout the install video towards the bottom of the product page.
Q
Ian • 07/24/2022, 5:15:23 PM
Great video below. Will these work with a plastic bed liner?
A
08/08/2022, 9:09:58 AM
Yes. Depending on whether or not it covers the factory threaded holes, you may have to drill through the plastic liner.
Q
Brandon • 08/13/2022, 0:52:24 AM
Can I mount traction boards straight out of the box? Or do i require additional accessories?
A
08/15/2022, 4:06:24 PM
You would need a traction board bolt or mount kit. We offer this one: https://www.jcroffroad.com/product/TRACBO-BP.html
Q
Bill Hackbarth • 09/23/2022, 2:10:47 PM
Will I have to remove the factory installed tie-down cleats?
A
09/28/2022, 3:39:40 PM
The ones shown in our photos will not need to be removed. If you have different mounts please contact our customer service team.
Q
Codey Nahmens • 10/02/2022, 11:53:01 PM
Are these reversible can I put it on either side or only passenger side
A
10/03/2022, 12:18:31 PM
Yes, it will work on either side.
Q
justin • 11/03/2022, 10:46:33 AM
Will these fit with tonneau cover clamps? It looks like they rest directly against the bed rail seam.
A
11/14/2022, 1:56:01 PM
They should fit with most low-profile clamps. Ours for our Softtopper fit fine on the shop truck.
Q
Dan • 06/10/2023, 4:36:23 PM
Can you use only the front portion of the side panel or does it need to go the full length? I have a putco bulkhead MOLLE panel and a swing out toolbox on the passenger side. Looking for something to fill the space between.
A
07/26/2023, 5:02:42 PM
You would need both front and rear panel in order for it to be installed properly.
Q
Michael • 01/05/2024, 10:41:03 AM
What's the total weight on this setup?
A
01/10/2024, 3:44:55 PM
21 lbs.
Q
M. S. Lyon • 02/06/2024, 7:36:35 PM
I know this says 19-23 but I'm having a hard time finding anything for my 95 ranger. Would this fit? Or do you have other product recommendations for that year?
A
02/09/2024, 10:55:45 AM
This would not fit a 95, we do not currently have anything for that year Ranger.
Q
Gus • 04/04/2024, 2:41:57 PM

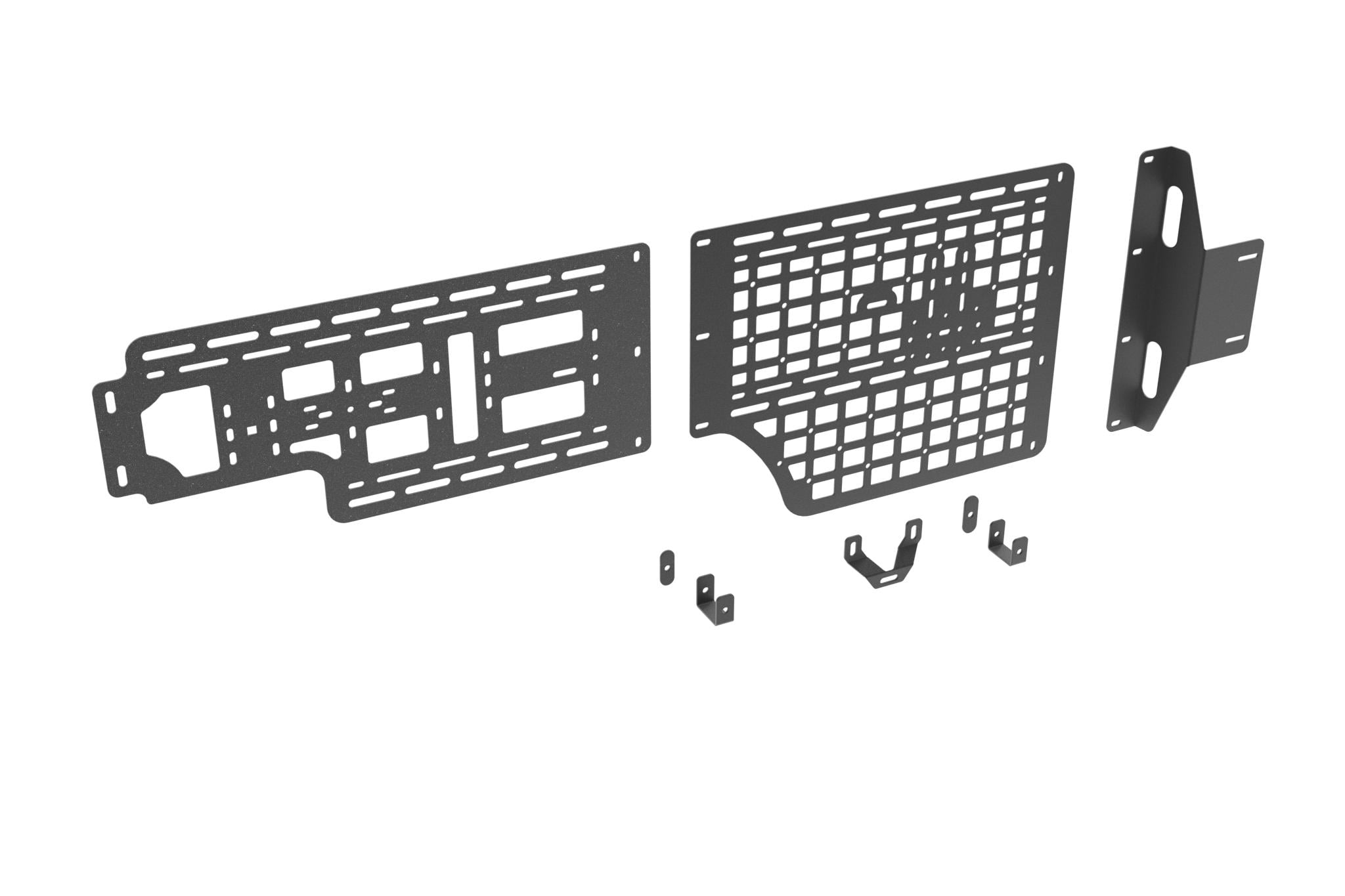

Does this include just the one bedside piece or all three pieces like in the second picture?
A
04/15/2024, 3:57:03 PM
This product is a single bedside molle panel.
Q
Cameron Taylor • 06/07/2024, 1:11:58 AM
Hi, I see a question regarding camper shell clamps, but what about SmartCap brackets? They are much different than standard camper shell clamps.
A
07/17/2024, 10:33:10 AM
They look like they should work just fine with our panels.
Q
Patrick • 09/03/2024, 9:01:38 PM
Will this fit 2024 Ranger? From what I can tell the bed length is the same as the 2023 in 2024 but want to confirm.
A
12/20/2024, 4:14:40 PM
It will not, this is only designed to fit the 4th gen Ranger.
Q
Ty • 10/15/2024, 1:06:37 PM
Will this fit the 2024 Ranger? The bed dimensions are slightly different.
A
12/20/2024, 3:37:11 PM
It will not, this is only designed for the 4th gen Ranger.
