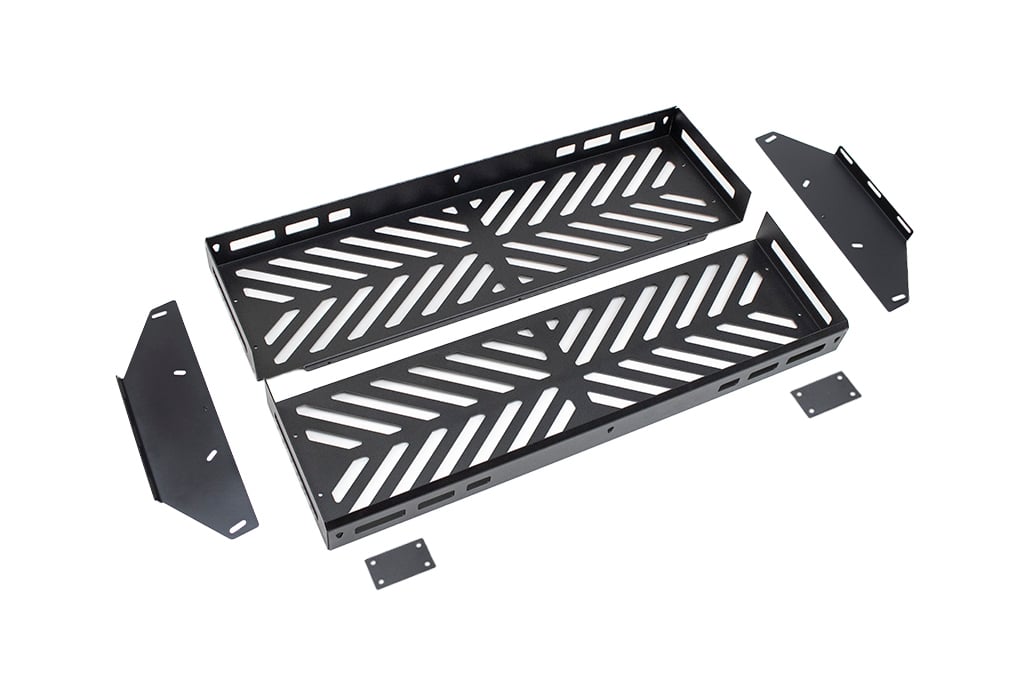

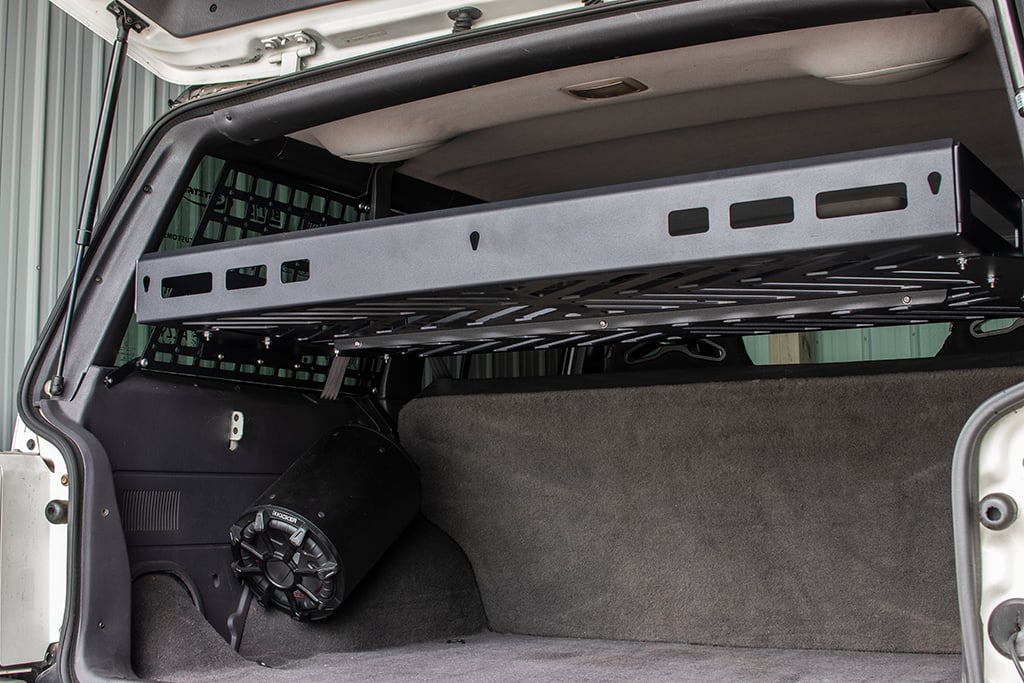

Designed to maximize space in the rear cargo area.
- Bolt together assembly
- Coated in a 2 stage satin textured black powder coat
- Includes assembly and mounting hardware
- Includes tie-down points
- Requires two Rear Window MOLLE Panels to mount
- Will mount at several different heights on MOLLE panels
- Made from .125" aluminum
Looking for answers to common questions about us or our products? See our FAQ here.
7 Questions asked on Interior Cargo Basket
•
Ask us anything
Q
Sean • 03/11/2021, 10:24:20 AM
How much space is there between the shelf and the molle panels?
A
03/16/2021, 3:15:09 PM
Roughly an inch or so at the top.
Q
Corey • 03/11/2021, 5:55:20 PM
Can you please tell me the dimensions of the basket thank you
A
03/16/2021, 3:15:09 PM
The floor is roughly 26.5 x 46.5"
Q
Chris w. • 03/17/2021, 4:59:57 PM
What is the weight capacity of this setup with both panels. Does it leave the panels pretty much unusable with the space it takes up? And can it quickly be removed or is this something that is hard mounted and doesn't have any quick removing ability?
A
03/22/2021, 6:19:29 PM
We don't have an official weight capacity on this setup. It does take up some of the room of the window panels, but not all of it. You can unbolt the basket, but it's not super fast to do so.
Q
Wade • 06/16/2021, 8:06:43 AM
Can you flip the mounting brackets upside down to lower the height of the shelf slightly?
A
06/25/2021, 11:08:27 AM
The angle of the brackets would be wrong upside down.
Q
Daniel Gonzalez • 07/11/2021, 10:37:35 PM
How much space would there be from the basket to a passenger head sitting in the back seat? My concern is someone waking there head on a rough trail
A
07/23/2021, 10:31:57 AM
Since the XJ doesn't have rear headrests, we'd recommend padding the front of the basket for rear seat passengers. Roll bar foam would work.
Q
ivan • 01/16/2023, 4:02:15 PM
How much weight can the basket hold without damaging the molle panels or any damage at all ?
A
01/20/2023, 5:04:32 PM
We don't have an official weight capacity on this setup. Load at your discretion.
Q
Cody • 03/31/2023, 11:30:33 AM
do you have to get the window thingys that the mount to?
A
04/11/2023, 3:01:44 PM
Yes, on the XJ it does require two Rear Window MOLLE Panels to mount.
Currently Viewing Reviews with a rating of 3. Click here to reset.
1
0
1
0
0
Bryan
(WA) | October 7th, 2021
I installed this basket last weekend and ran into issues. The washers supplied are very small and several pulled through the molle panel when attaching the support bracket for the cargo basket. I had to source my own washers to prevent this from happening. As it is the problem was discovered too late and I have one attaching bolt that is pinched so tightly into the hole that the button head bolt stripped when trying to remove it so I could use the larger washer.
Also the basket, or perhaps the mounting holes, were sightly more narrow than the holes in the brackets, requiring me to have to "bow" out the mole panel sightly to get the holes up line up between the support bracket and the basket. The instructions were clear in the video made for the product but show the basket just sitting nicely on the brackets, which wasn't my experience at all. I thought I might not even have the right basket but I made it work.
Now that it's all in it's nice and useful but I do worry about everything holding up once I load gear into it.
Note From JcrOffroad: Bryan please contact our customer service team and we can help with this install.
